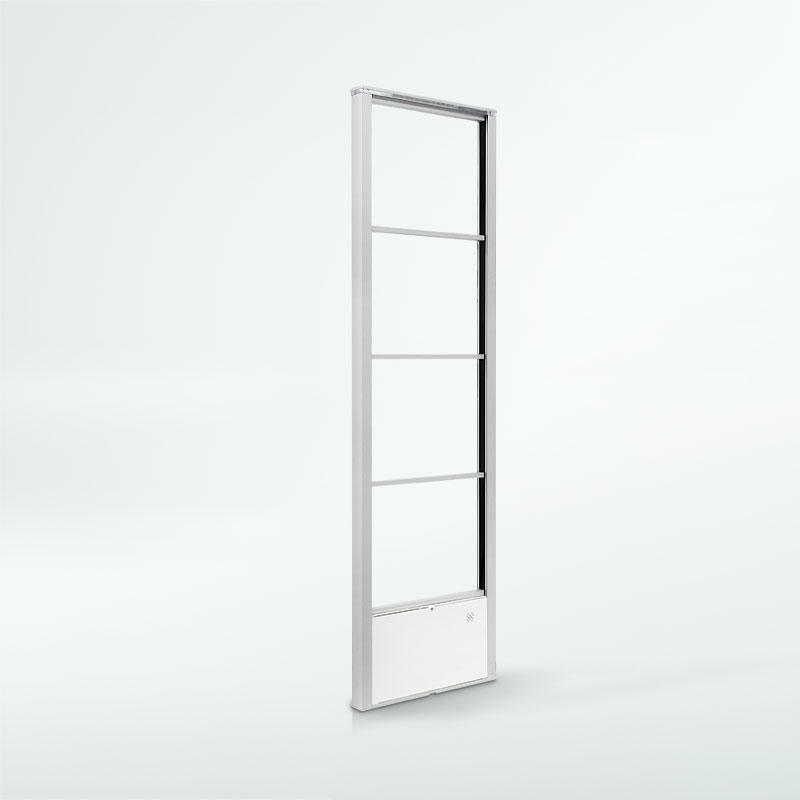

NOVA M10 RF PEDESTAL
2.0m detection. Refined for premium retail.
Engineered for sophisticated storefronts that demand both high-level security and minimalist aesthetics. The NOVA M10 delivers a commanding 2.0m detection range for R50 hard tags, housed in a premium aluminum frame that complements any high-end interior.
One pedestal, three smart configurations.
Adapt the NOVA M10 to your project’s specific technical and budget requirements with our high-performance digital platforms.

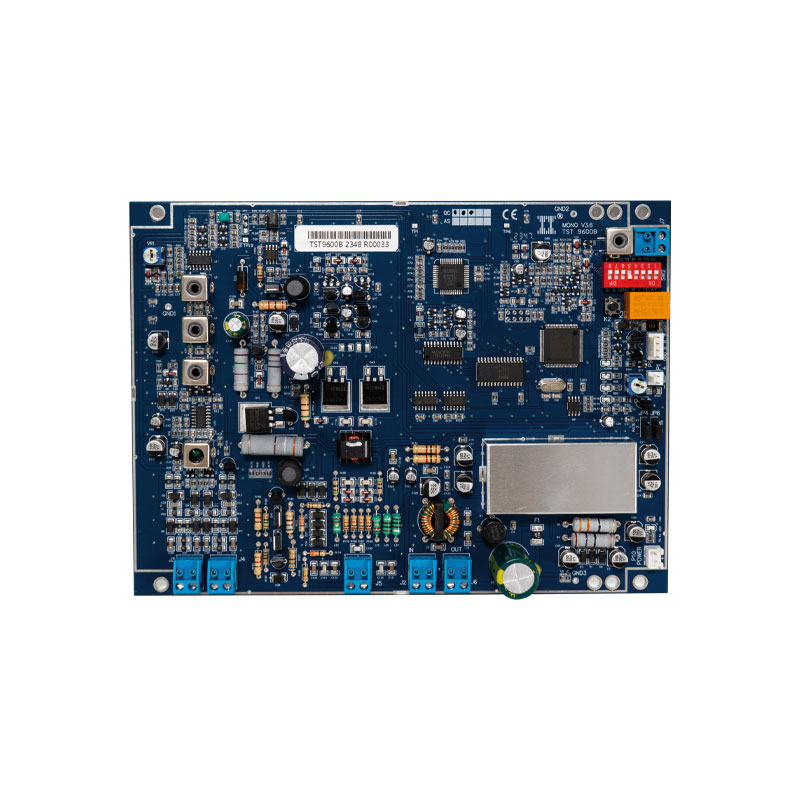

9600B MONO Mode
The elite choice for single-pedestal, minimalist entrances.

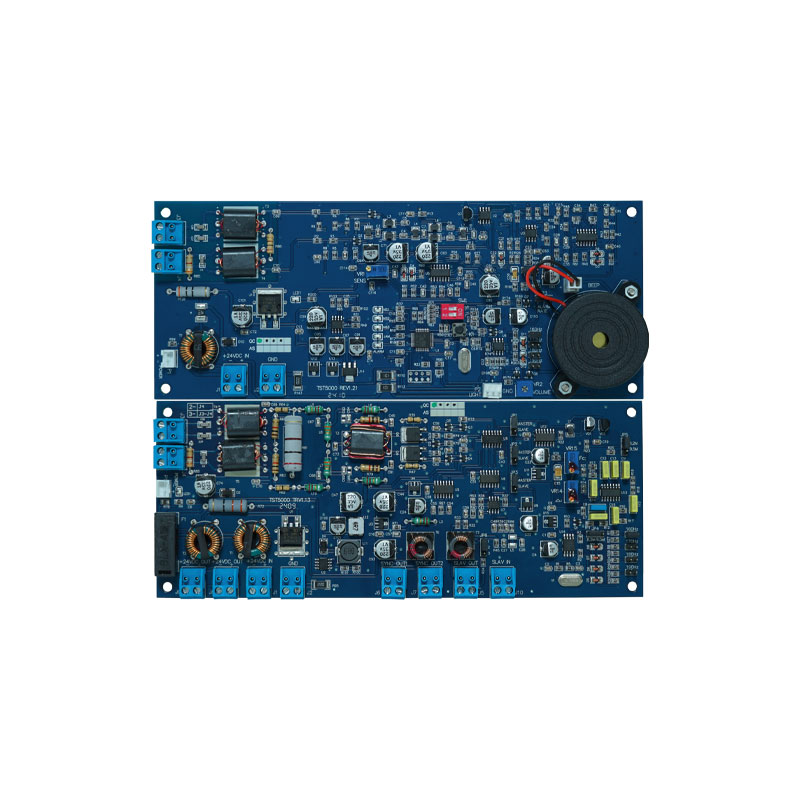

5000 TX+RX Mode
Ultra-stable workhorse for classic retail projects.

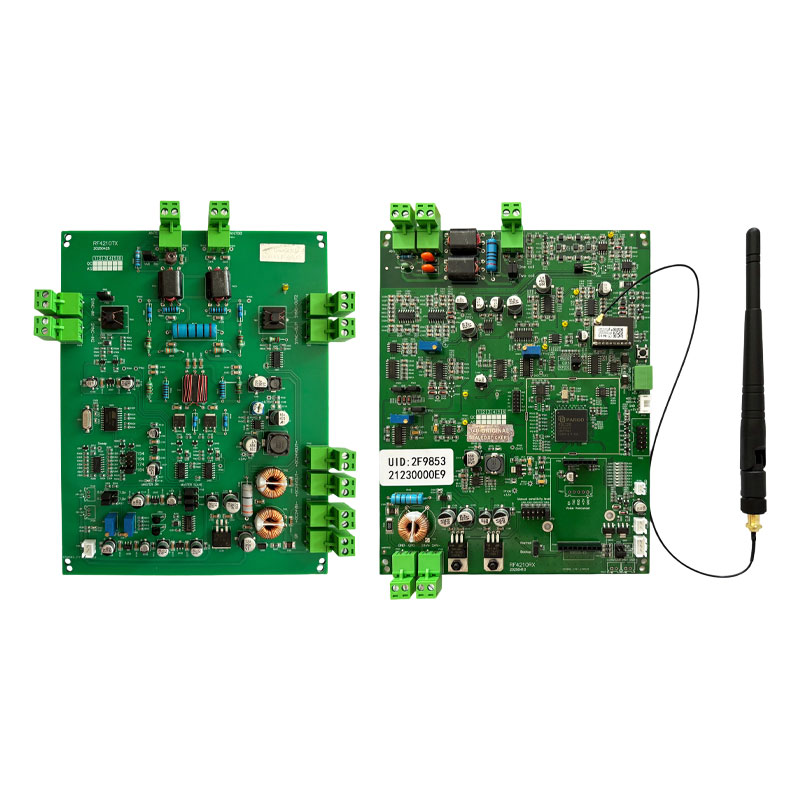

4200 Wi-Fi Cloud
Integrated WiFi for remote tuning. Software and remote support are 100% free.
Performance, verified.
Coverage that empowers wide-entrance architecture. Whether you choose our Mono or Dual configurations, the NOVA M10 ensures every tag is accounted for.
| Detection Category | 9600B V3.6 (MONO) | 5000 (TX+RX) | 4200 (TX+RX) |
|---|---|---|---|
| 40*40 Soft Label | 1.0 m per side | 1.6 m | 1.6 m |
| 50*50 Soft Label | 1.1 m per side | 1.7 m | 1.7 m |
| R50 Hard Tag | 1.2 m per side | 2.0 m | 2.0 m |
Industrial design excellence.
Warranty & support
Beyond Manufacturing. Your Strategic Partner.
Nova M10 Detailed Specifications
| Physical & Material Specs | |
|---|---|
| Frequency | 8.2Mhz |
| Frame Material | High-grade Sandblasted Aluminum Alloy |
| Dimensions | 153 * 44 * 4.5 cm |
| Input Voltage | 110V / 220V AC, 50/60HZ |
| Certifications: | CE Compliant |
| Color | Full black / Silver + black / Silver + white |
| Electronic Core Options | |||
|---|---|---|---|
| Feature | 9600B V3.6 (Mono) | 5000 Dual | 4200 Dual |
| Technology | Leading-edge RF 8.2MHz | Advanced RF 8.2MHz | Advanced DSP RF 8.2MHz |
| Detection Mode | Mono | TX + RX | TX +RX |
| Remote Support | N/A | N/A | Software + WiFi Tuning |
