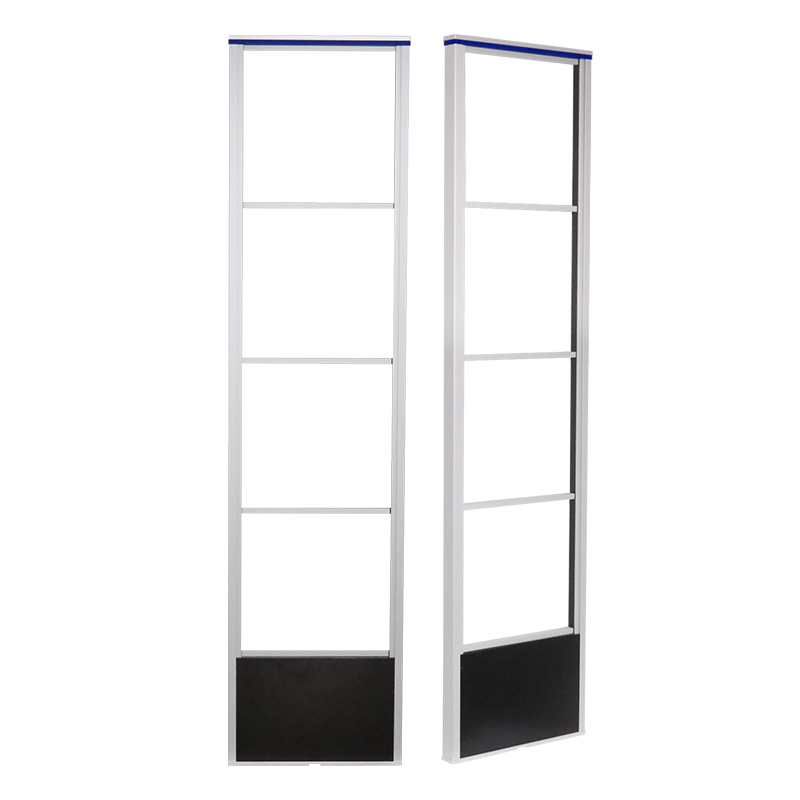

DETASEC DTRF6060 Aluminum Alloy RF Antenna

DTRF6060 Aluminum Alloy RF Antenna

The DTRF6060 is a combined RF based 8.2MHz article surveillance System. It offers long distance detection for hard tags and soft label in challenging store environments.

We installed powerful RF dual or mono board for it. They are 9550 dual board , 3.54 mono board and 3.93 mono board.

Sensitivity adjusted by switch on the baord.

DTRF6060 antenna is strong, well designed and robust enough for the most demanding of retail suitable for small boutiques like High Street Apparel
stores, Bookstores, Drugstores & Pharmacies, Accessories & Giftshops, Office & Media, Toys and other specialty stores.

Share on linkedin
Share on facebook
Share on twitter
Share on vk
Share on odnoklassniki
Share on skype
Share on whatsapp

DUAL SYSTEM

Board : 9550

Type : TX - RX

Frequency : 8.2MHZ

Dimension: 1620*400*405mm

For 40*40MM Soft Label Detection: 1.7m

For Mini Square Tag Detection : 1.7m

For Big Square Tag Detection : 2.0m

MONO SYSTEM

Board : Mono 3.54 / Mono 3.93

Type : MONO

Frequency : 8.2MHZ

Dimension: 1620*400*405mm

For 40*40MM Label Detection: 0.8~0.95m/side

For Mini Square Tag Detection : 0.85~1.0m/side

For Big Square Tag Detection : 1.0~1.3m/side
